Location : Home/Aluminum Strip/ 3003 3105 Coated Aluminum Coil

3003 3105 Coated Aluminum Coil

Last Updated :2023/07/05

3003 3105 Coated Aluminum Coil
3003 3105 Color Coated Aluminium Coil
Introduction
3003 color coated aluminum coil sheet is an important alloy in China, price cheaper than 3105, and almost same as 1100、1060、1070 etc alloy, but has medium strength with good resistance to atmospheric corrosion, and very good weldability as well as good cold formability. It has better mechanical properties, especially at elevated temperatures than the 1000 series alloys. Therefore
3003 aluminum coated coil sheet is widely used for building industry, such as roofing and sidings, ceilings, corrugated sheets, good for insulation of heating and cooling.



3105 color coated aluminum coil sheet is an essentially 98% pure aluminium alloy with minor additions for strengths, because it has manganese,  its corrosion resistance is very good, and also its strength is greater than 1000 series alloys, but its price is almost same as 1000 series alloys, therefor it is widely used for making roofing.
Alloy:AA3003 3105
Temper:HO,H12,H14,H16,H18,H22,H24,H26,H28
Thickness:0.2mm-6.0mm
Width:80mm-2300mm
Length:100-11000mm
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
MOQ:5 tons per size
Mother coil:DC or CC
Weight:about 0.3-2.5mts per pallet
Surface:Color Coated, Many kinds of Color
Package:Export standard package with wooden pallet
Delivery time:within 30days
Origin:Zhengzhou,China
Certificate: Mill Test Certificate,Certificate of origin:Form A,Form E,CO
Regular size:1.0*1219*2438,2.0*1220*2440,3.0*1200*2400,3.0*1200*3600,2.5*1250*2500,
3.0*1500*3000,2.0*1500*3600

Chemical Properties – 3003 Color Coated Aluminium Coil Strip

Alloy Designation Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks Others Aluminium
min
Numerical Chemical Sympols Each Total
EN AW
-3003
EN AW-
AI Mn1Cu
0.6 0.7 0.05-0.2 1.0-1.5 0.10 0.05 0.15 Remainder


Chemical Properties – 3105 Color Coated Aluminium Coil Strip

Alloy Designation Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks Others Aluminium
min
Numerical Chemical Sympols Each Total
EN AW
-3105
EN AW-
AI Mn0.5
Mg0.5
0.6 0.7 0.3 0.30-0.8 0.2-0.8 0.20 0.40 0.10 0.05 0.15 Remainder


Specification – 3003 Color Coated Aluminium Coil Strip

Product Name 3003 Aluminum Coil Strip
Thickness(mm) 0.0065-150mm
Width(mm) 25mm-2200mm
Packing Export standard, covering with brown paper and plastic film then packed with wooden case/pallet, eye to wall or eye to sky

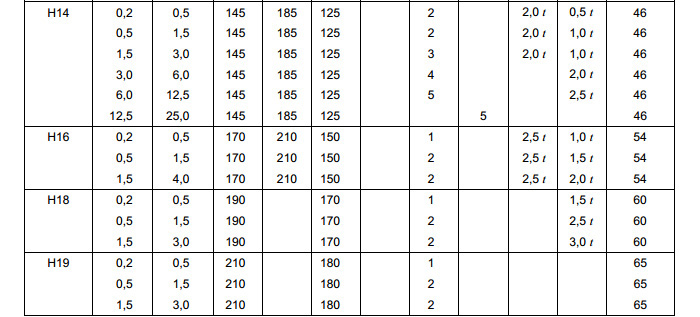

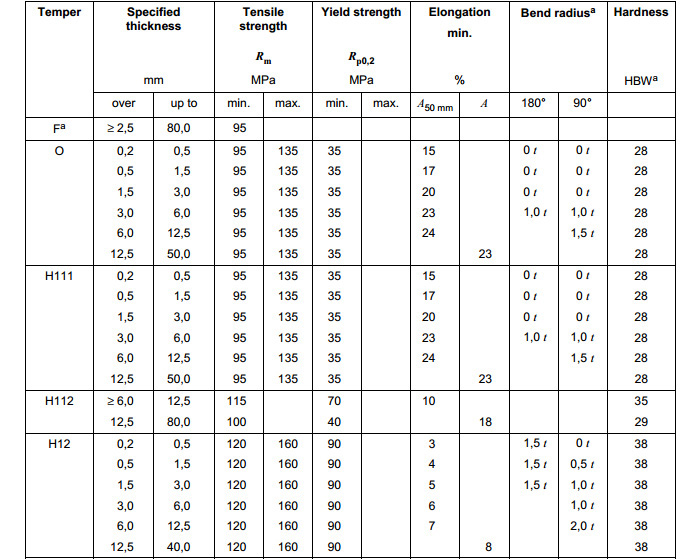

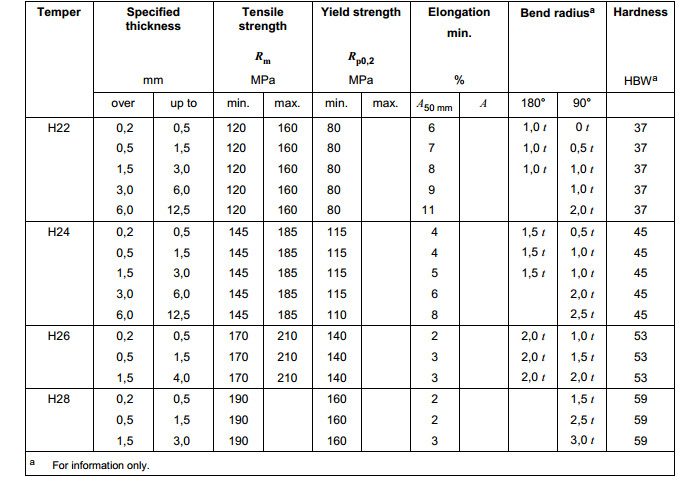

Mechanical Properties – 3003 3105 Color Coated Aluminium Coil Strip





Application : – 3003 3105 Color Coated Aluminium Coil Strip

Al – Mn aluminum foil 3003 3105 is a kind of anti-rust aluminum to be used widely.This alloy strength is not high(slightly higher than industrial pure aluminum) and it can’t heat treatment to strengthen, so the cold working method is adopted to improve its mechanical properties. Aluminum foil 3003 has high plasticity in annealing state and in a cold working hardening plasticity is good. when the cold work hardening, it has low plasticity , good corrosion resistance, good weldability, But cutting performance is bad. Many industries Purposes are mainly used for low load parts in a liquid or gas medium taking advantages of its high plasticity and good weldability, such as
post box, gas or oil duct, and other various liquid containers, deep drawing parts.
